Tylaska
Trigger Snap Shackle
Trigger Snap Shackle
Regular price
$201.27
Regular price
$241.58
Sale price
$201.27
Unit price
per
Couldn't load pickup availability
Tylaska’s Trigger Snap Shackles are world renowned as the best sailing snap shackles that money can buy. Designed to be easily released one handed even under load, while also being extremely resistant to accidental release from flogging, vibration, or shock loads. Smooth flowing curves minimized the risk of fouling or snagging on other rigging or sails. Fabricated from high strength 17-4 PH stainless steel and polished to a mirror finish, the T-Shackle is both extremely strong and highly corrosion resistant.
Size guidelines:
| Boat length | Size |
| 20-30ft | T5 |
| 24-36ft | T8 |
| 30-45ft | T12 |
| 40-50ft | T16 |
| 40-70ft | T20 |
Specifications:
| Attribute | T5 | T8 | T12 | T16 | T20 |
|---|---|---|---|---|---|
| Weight | 61 g | 99 g | 167 g | 258 g | 360 g |
| Working Load Limit | 1130 kg | 1810 kg | 2720 kg | 3630 kg | 4540 kg |
| Breaking Load | 2270 kg | 2270 kg | 5440 kg | 7260 kg | 9070 kg |

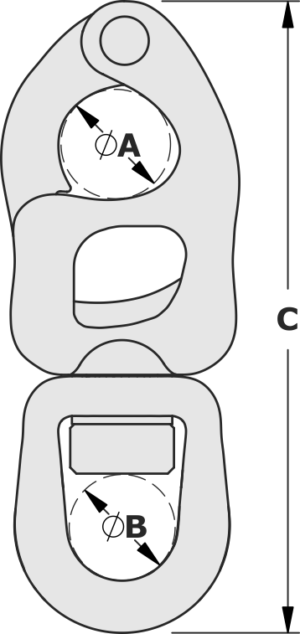

| A (mm) | 13.5 | 16 | 18 | 22.9 | 25.1 |
| B (mm) | 12.7 | 14.6 | 18.2 | 20.1 | 25.1 |
| C (mm) | 76.7 | 88.5 | 104 | 120 | 134 |
