Low Friction Ring

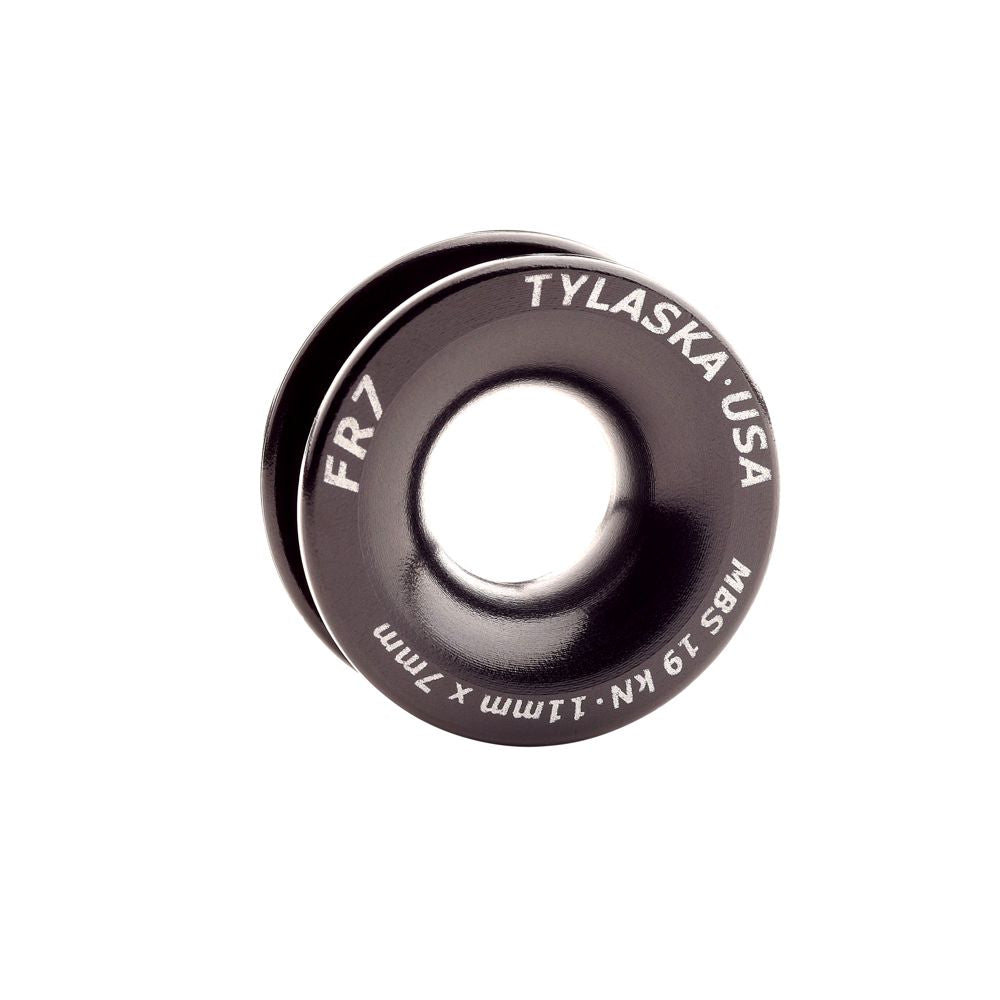

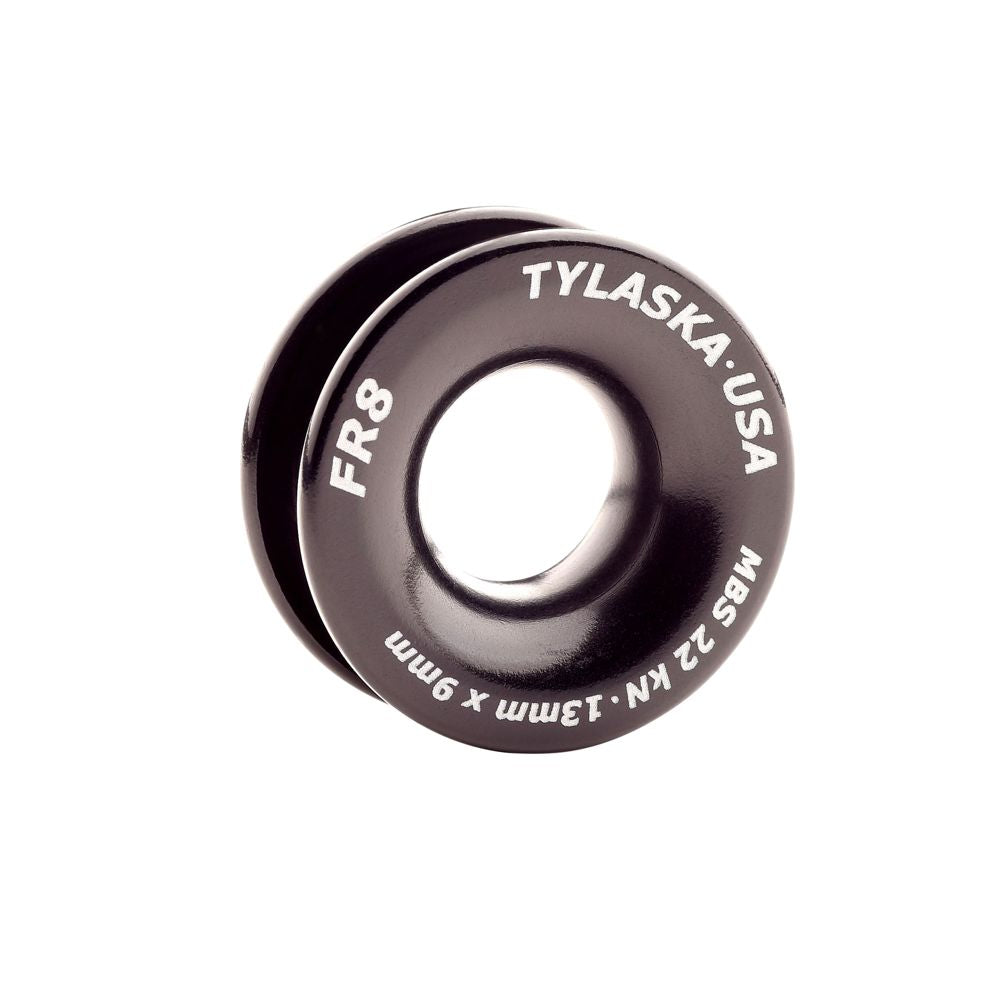

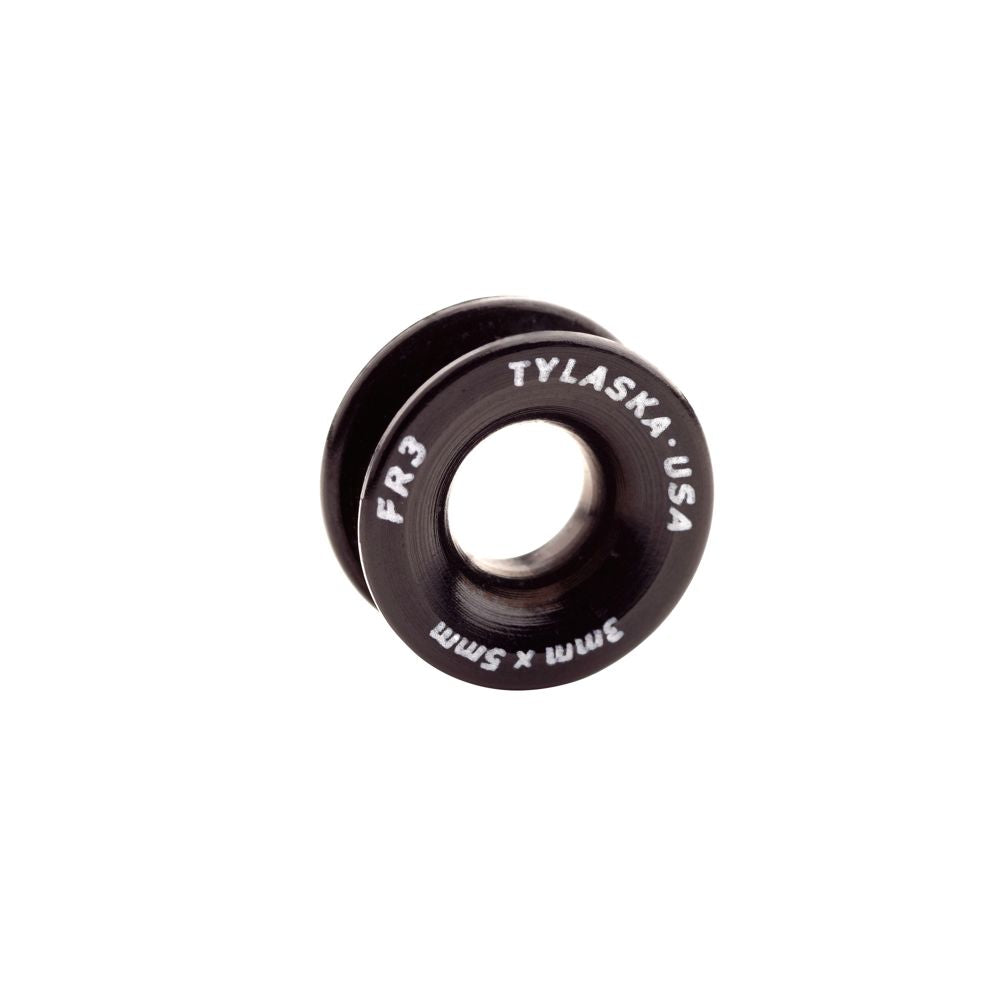

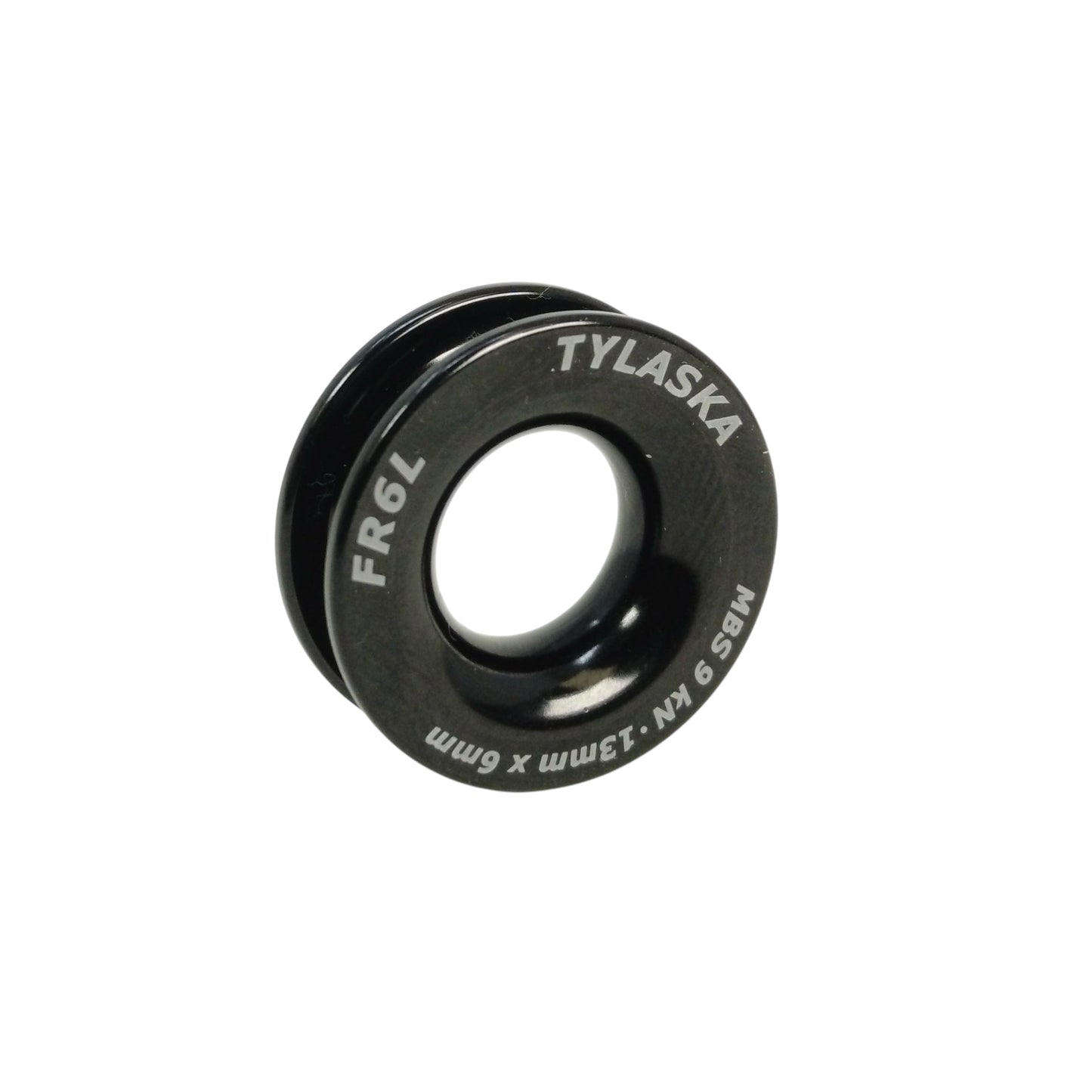

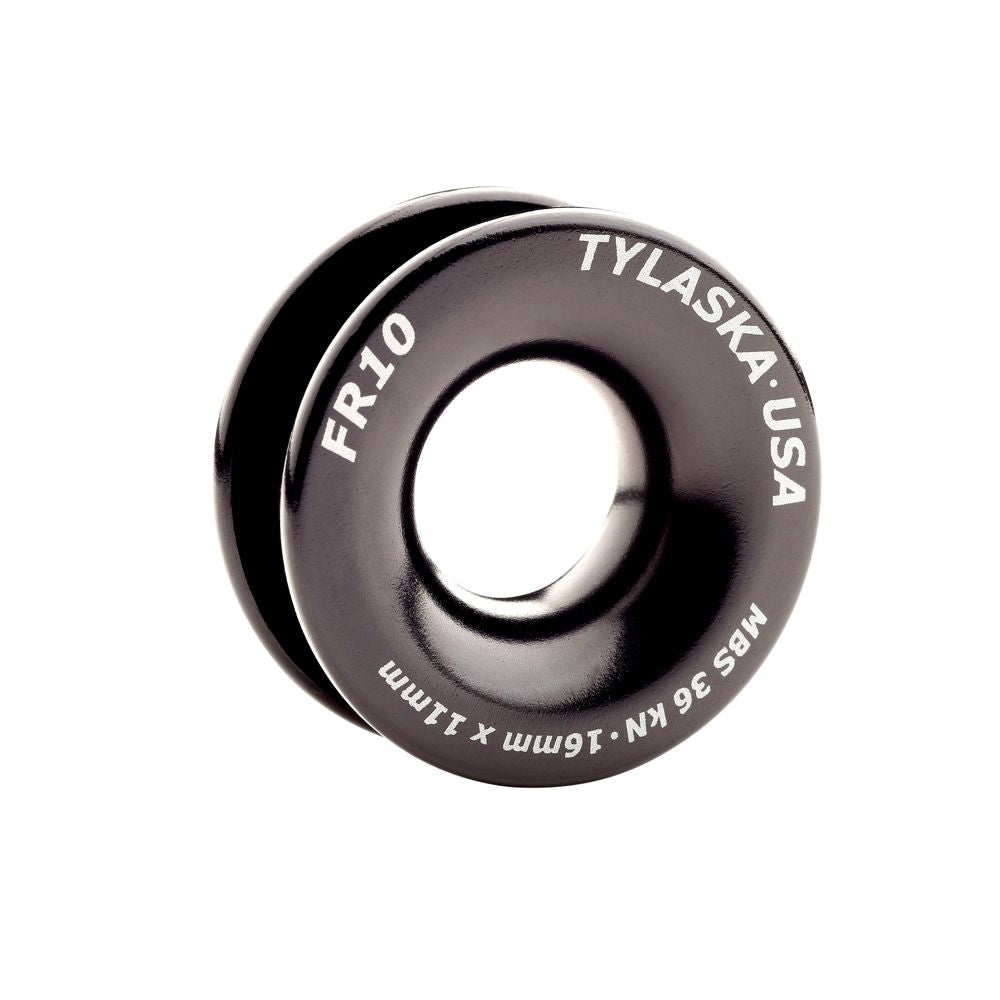

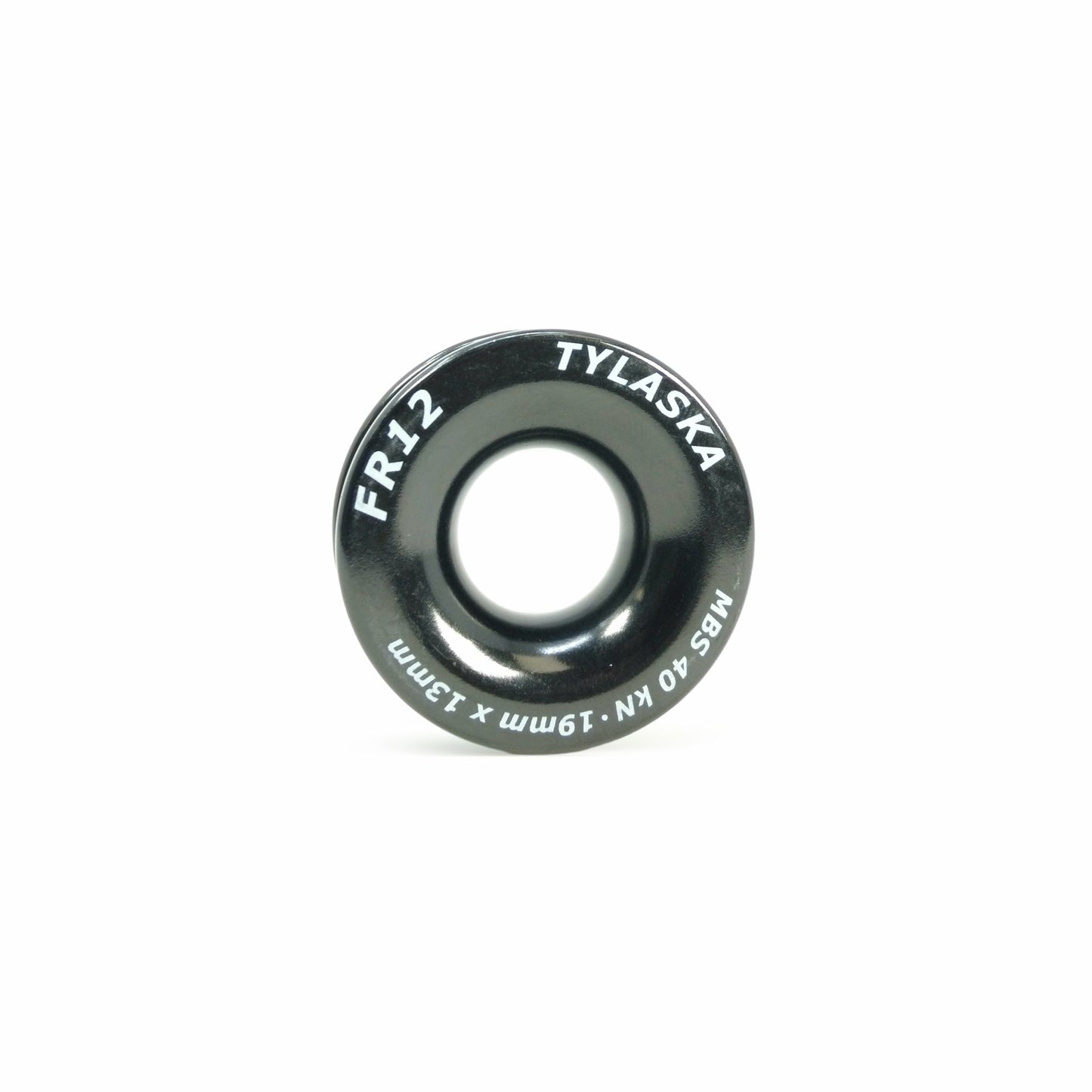

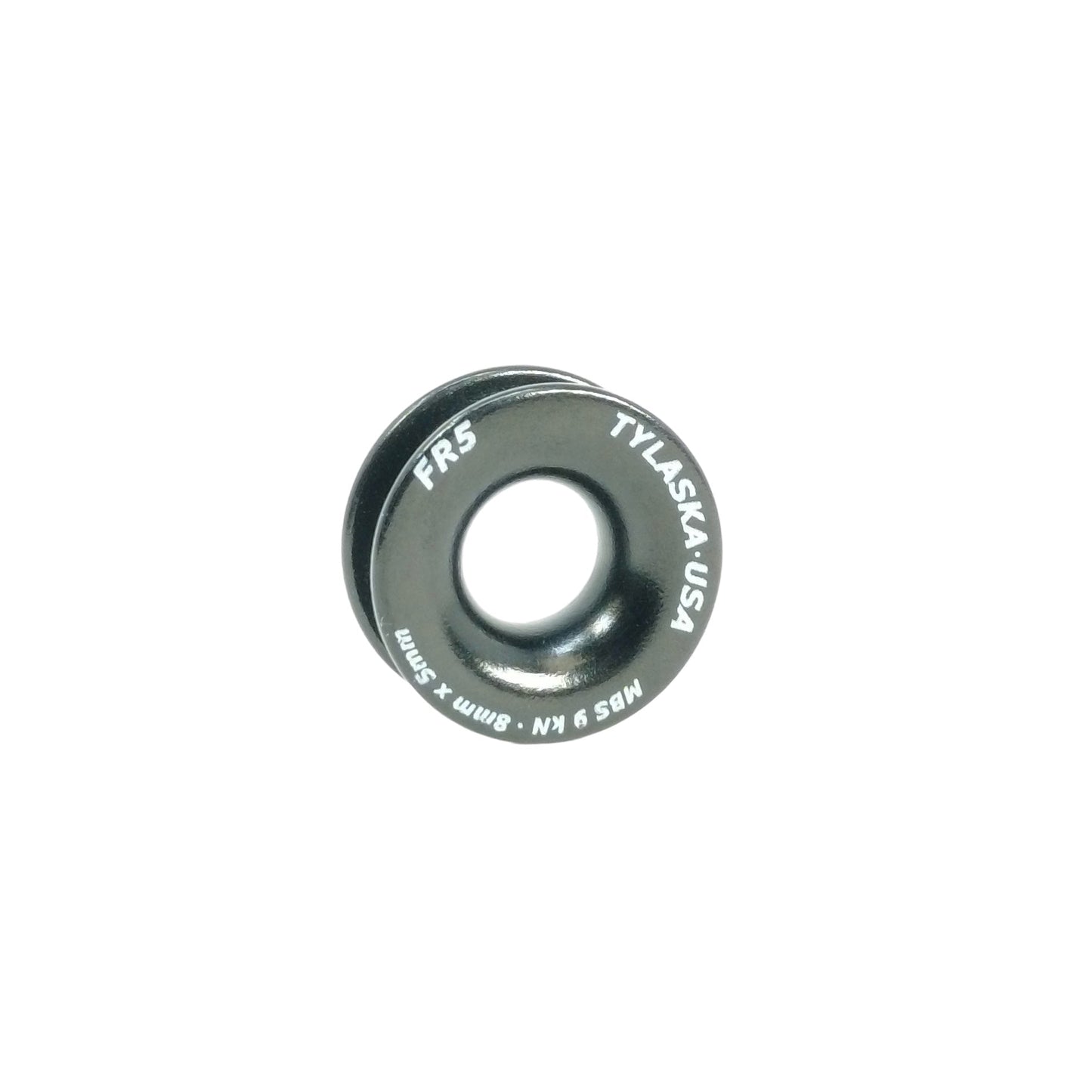

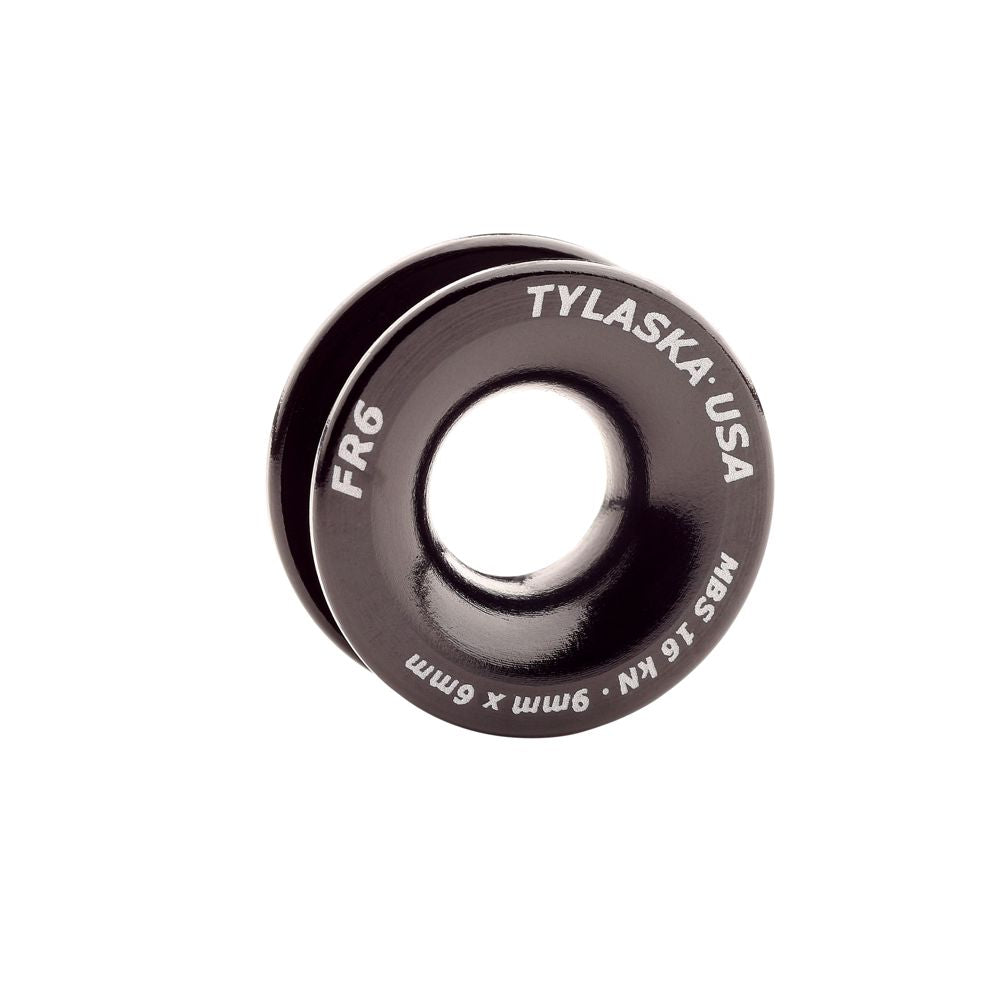

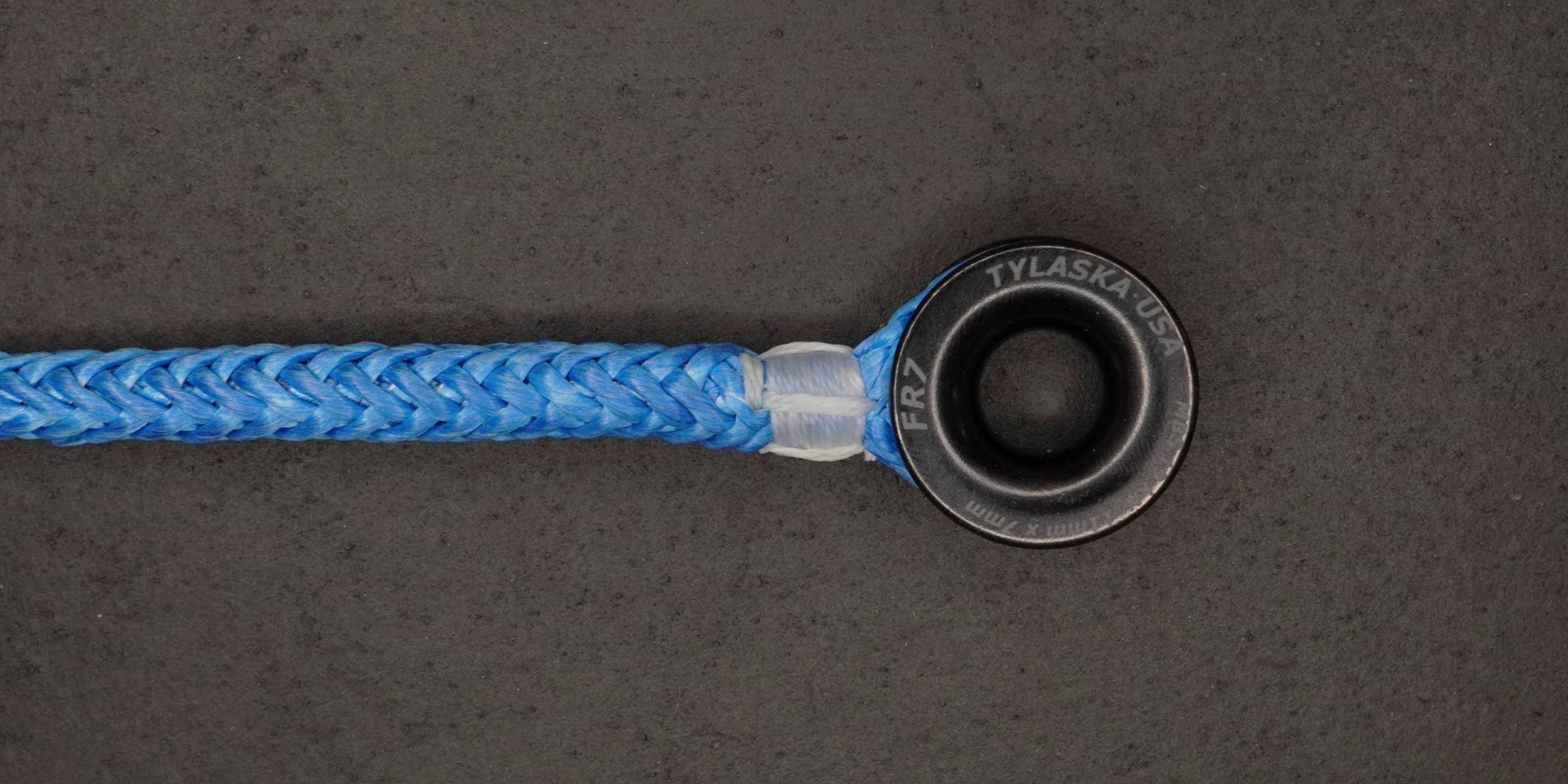

Tylaska Low Friction Rings are lighter and smaller than a conventional pulley block and have become a popular alternative for many applications where traditional blocks once ruled. Instead of rolling on a pulley sheave, the active line merely slides on the inside smooth surface of the ring. Another line is spliced around the ring to attach to a fixed point. This attachment line is sometimes made as a loop that can be luggage tagged onto a pad eye or toe rail. Frictional losses are a non-factor in most low speed low deflection applications, especially when used with low friction lines such as dyneema. In addition to being lighter and less expensive than conventional blocks, ring ferrules are also less prone to failure as they have moving parts to wear or need servicing.

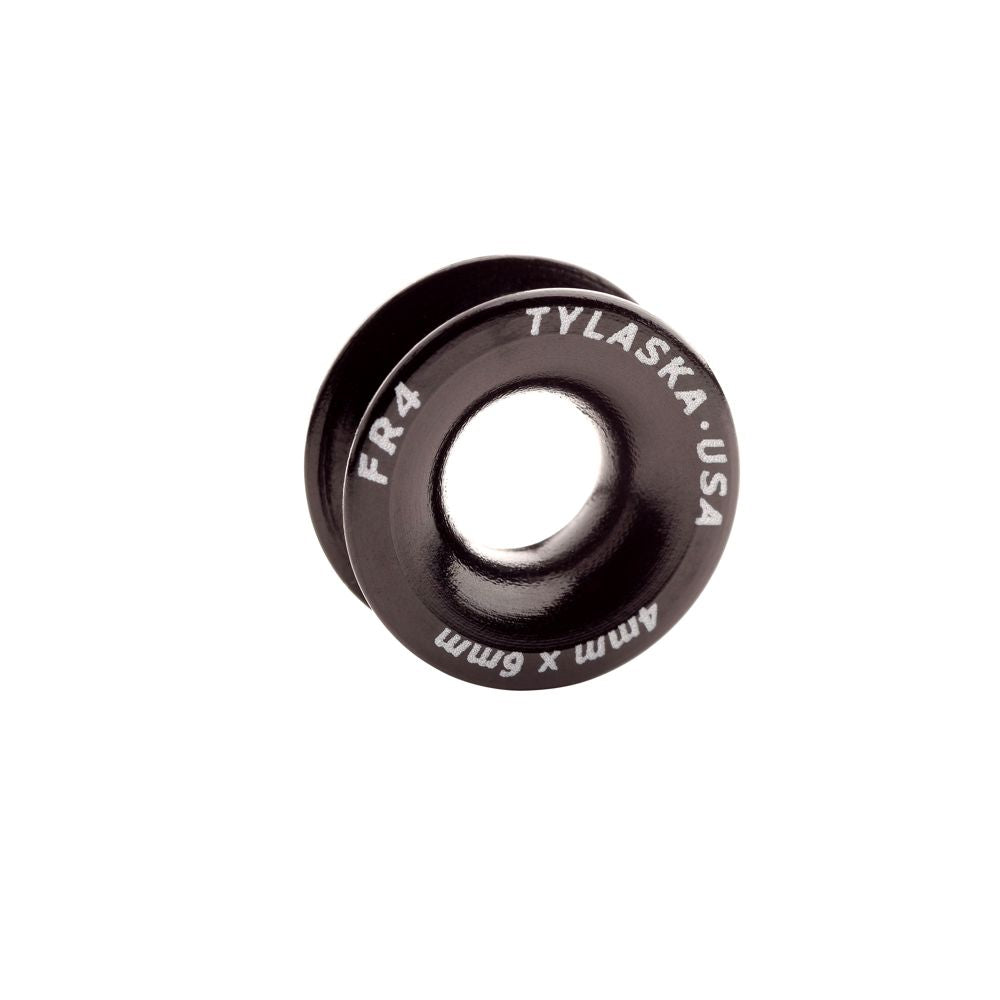

The two most critical dimensions for sizing are the hole diameter and the groove diameter. The groove diameter corresponds to the maximum diameter of line that can be spliced around the ring. The line passing through the ring should be smaller than the hole diameter to ensure it moves freely.

Size chart
