Wichard
Headboard Shackle
Headboard Shackle
Regular price
$51.39
Regular price
$67.68
Sale price
$51.39
Unit price
per
Couldn't load pickup availability

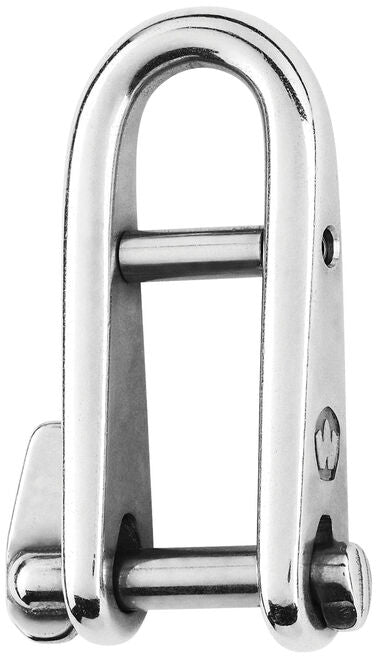

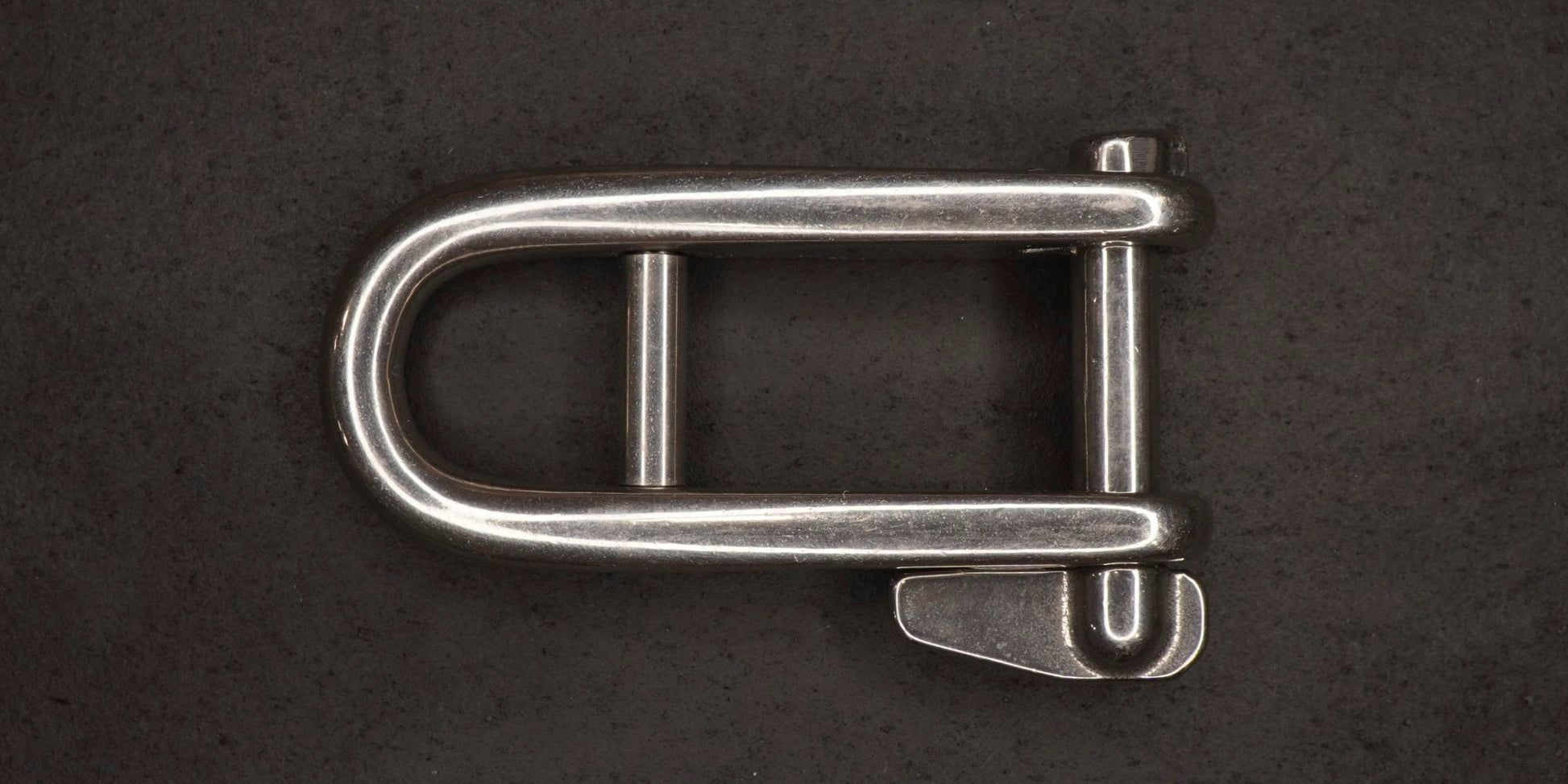

Strong, economical, and easy to use halyard shackle.
- Forged D shackle in HR stainless steel grade (17,4 PH)
- A HR shackle can be up to 60% more resistant than a shackle in 316L stainless steel
- Opening and closing is done simply by rotating the pin half a turn
- No risk to lose the pin as it remains attached
- Outstanding working and breaking loads
Specifications

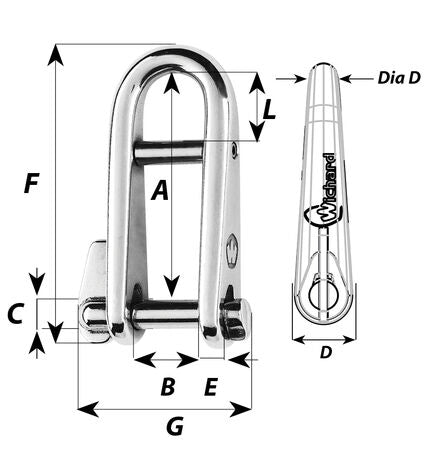

| Attribute | Small (91432) | Medium (91433) | Large (91434) |
|---|---|---|---|
| Working load | 480 kg | 600 kg | 960 kg |
| Breaking load | 1500 kg | 2200 kg | 3500 kg |
| Weight | 31 g | 53 g | 123 g |
| A | 37 mm | 45 mm | 59 mm |
| B | 13 mm | 16 mm | 21 mm |
| C | 5 mm | 6 mm | 8 mm |
| D | 11 mm | 13 mm | 17 mm |
| E | 4 mm | 4 mm | 6 mm |
| F | 49 mm | 60 mm | 79 mm |
| G | 31 mm | 37 mm | 48 mm |
| L | 12 mm | 15 mm | 20 mm |
